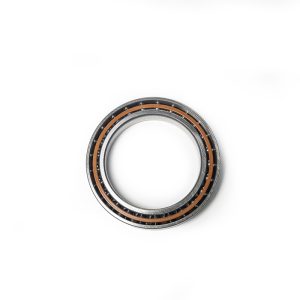

Model H719

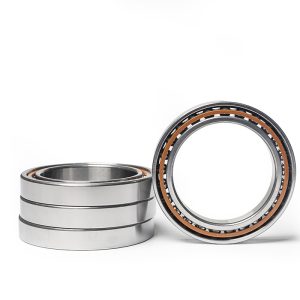

Model H719 - Image 2

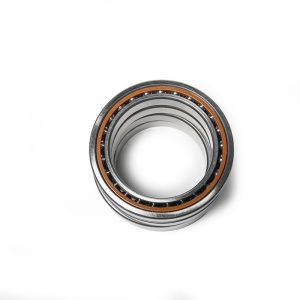

Model H719 - Image 3

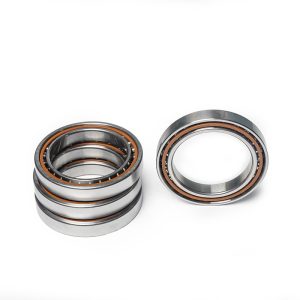

Model H719 - Image 4
Model H719 - Image 5
Model H719 - Image 6

Model H719

The Model H719 bearing features an angular contact design that offers a unique combination of radial and axial stiffness. This design ensures that the bearing can maintain its alignment and stability under varying operating conditions, making it an ideal choice for applications that require precision alignment and smooth rotation. Its ability to handle both radial and axial loads also makes it well-suited for applications that involve complex load patterns and dynamic loads.

Category:

The Model H719 bearing features an angular contact design that offers a unique combination of radial and axial stiffness. This design ensures that the bearing can maintain its alignment and stability under varying operating conditions, making it an ideal choice for applications that require precision alignment and smooth rotation. Its ability to handle both radial and axial loads also makes it well-suited for applications that involve complex load patterns and dynamic loads.

Product Specification:



Bearing code

 Dimensions Rated load Limit speed weight
d D B rsmin r1smin a Cr Cor fat oil Kg
mm ≈ KN r/min ≈
71900C 10 22 6 0.30 0.10 5 2.9 1.8 70000 110000 0.01
71900AC 10 22 6 0.30 0.10 7 2.7 1.7 67000 100000 0.01
71901C 12 24 6 0.30 0.10 5 3.2 2.2 63000 90000 0.01
71901AC 12 24 6 0.30 0.10 7 3.1 2.1 56000 85000 0.01
71902C 15 28 7 0.30 0.10 6 4.8 3.4 53000 80000 0.02
71902AC 15 28 7 0.30 0.10 9 4.6 3.2 50000 75000 0.02
71903C 17 30 7 0.30 0.10 7 5.1 3.8 50000 75000 0.02
71903AC 17 30 7 0.30 0.10 9 4.8 3.6 45000 67000 0.02
71904C 20 37 9 0.30 0.15 8 7.4 5.8 40000 60000 0.04
71904AC 20 37 9 0.30 0.15 11 7.0 5.6 38000 56000 0.04
71905C 25 42 9 0.30 0.15 9 7.6 6.5 34000 50000 0.04
71905AC 25 42 9 0.30 0.15 12 7.2 6.2 30000 45000 0.04
71906C 30 47 9 0.30 0.15 10 8.0 7.6 30000 45000 0.05
71906AC 30 47 9 0.30 0.15 13 7.6 7.2 26000 40000 0.05
71907C 35 55 10 0.60 0.15 11 11.0 10.9 26000 40000 0.07
71907AC 35 55 10 0.60 0.15 16 10.4 10.3 20000 34000 0.07
71908C 40 62 12 0.60 0.15 13 14.0 14.2 20000 34000 0.11
71908AC 40 62 12 0.60 0.15 18 13.3 13.5 18000 30000 0.11
71909C 45 68 12 0.60 0.15 14 14.7 16.1 18000 30000 0.13
71909AC 45 68 12 0.60 0.15 19 13.9 15.2 17000 28000 0.13
71910C 50 72 12 0.60 0.15 14 19.0 21.2 17000 28000 0.13
71910AC 50 72 12 0.60 0.15 20 17.9 20.1 15000 24000 0.13
71911C 55 80 13 1.00 0.30 16 23.7 27.4 15000 24000 0.18
71911AC 55 80 13 1.00 0.30 22 22.4 26.0 14000 22000 0.18
71912C 60 85 13 1.00 0.30 16 24.8 30.3 14000 22000 0.19
71912AC 60 85 13 1.00 0.30 23 23.3 28.7 13000 20000 0.19
71913C 65 90 13 1.00 0.30 17 25.1 31.9 13000 20000 0.2
71913AC 65 90 13 1.00 0.30 25 23.6 30.2 12000 19000 0.2
71914C 70 100 16 1.00 0.30 19 34.5 43.4 12000 19000 0.33
71914AC 70 100 16 1.00 0.30 28 32.6 41.2 11000 18000 0.33
71915C 75 105 16 1.00 0.30 20 25.0 45.6 11000 18000 0.35
71915AC 75 105 16 1.00 0.30 29 33.0 43.2 9500 16000 0.35
71916C 80 110 16 1.00 0.30 21 35.5 47.8 10000 17000 0.37
71916AC 80 110 16 1.00 0.30 30 33.5 45.3 9000 15000 0.37
71917C 85 120 18 1.10 0.60 23 46.5 61.9 9500 16000 0.53
71917AC 85 120 18 1.10 0.60 33 43.8 58.6 8500 14000 0.53
71918C 90 125 18 1.10 0.60 23 47.2 64.8 9000 15000 0.56
71918AC 90 125 18 1.10 0.60 34 44.5 61.4 8000 13000 0.56
71919C 95 130 18 1.10 0.60 24 47.9 67.8 9000 15000 0.58
71919AC 95 130 18 1.10 0.60 35 45.2 64.1 8000 13000 0.58
